1100°F / 593°C High Temperature Fiberglass Knitted LadderTapeä:
Heat, Flame & Fire Resistant and Thermal Insulating
Heat, Flame & Fire Resistant and Thermal Insulating
This high temperature LadderTapeä bolt-hole (drop-warp) style tape is heat, flame and fire resistant. Fiberglass (fibreglass) knitted tapes are fabricated from high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1000°F / 520°C.
These high temperature tapes provide protection of industrial wires, cables, hoses, tube and pipe and also provide thermal insulation and personnel protection. Also used as a gasket or seal.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable. The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18. For tapes that are denser and stiffer than knitted tapes, consider using a woven version of this tape (woven fiberglass tape).
These high temperature tapes provide protection of industrial wires, cables, hoses, tube and pipe and also provide thermal insulation and personnel protection. Also used as a gasket or seal.
This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable. The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18. For tapes that are denser and stiffer than knitted tapes, consider using a woven version of this tape (woven fiberglass tape).

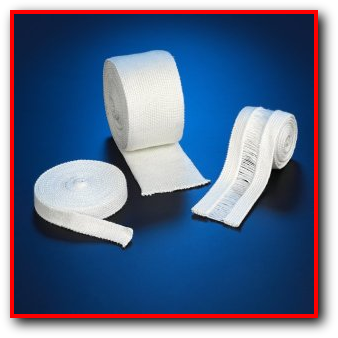

High Temperature
Fiberglass Knitted Tape
Left two tapes: plain version
right tape: drop-warp / bolt-hole-ladder version
Fiberglass Knitted Tape
Left two tapes: plain version
right tape: drop-warp / bolt-hole-ladder version
Part Number T-FG-K
Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair. Good resistance to most alkalis.
Breaking Elongation: 4.81% Std. 4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TEX
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair. Good resistance to most alkalis.
Breaking Elongation: 4.81% Std. 4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TEX
Benefits of our High-Temperature Fiberglass Heat Protection Products
Fiberglass offers excellent heat resistance, retaining more than half of its room temperature tensile strength at 675°F / 357°C, and more than 25% at 875°F / 468°C. It begins to soften at 1500°F / 815°C and melts near 2050°F / 1121°C. Non-combustible and excellent thermal conductivity to dissipate hot spots; high resistance to chemicals and unaffected by UV light.
Fiberglass offers excellent heat resistance, retaining more than half of its room temperature tensile strength at 675°F / 357°C, and more than 25% at 875°F / 468°C. It begins to soften at 1500°F / 815°C and melts near 2050°F / 1121°C. Non-combustible and excellent thermal conductivity to dissipate hot spots; high resistance to chemicals and unaffected by UV light.
